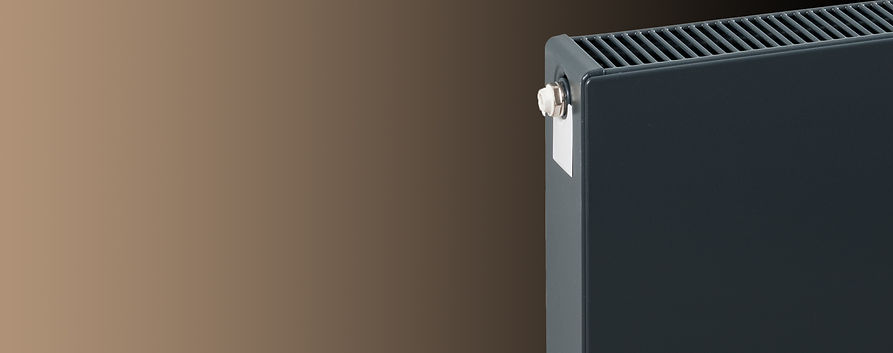

TYPE 22

The Clyde Type 22 Flat Panel is a robust and cost effect solution. The single steel flat panel radiator with single convector is available in 4 heights and 9 widths.

Show More

KEY FEATURES

  • Double steel flat panel

  • Double convector

  • 4 heights

  • 12 widths

  • Pipework connection size is R½ Flow and Return BOE.

  • Test pressure: 13 Bar

  • Max. Operating Pressure: 10 Bar

  • Max.Working Temperature: 110ºC

RANGE SELECTION

  • 4 heights (mm); 300, 400, 500 & 600

  • 12 widths (mm) 400 to 2000

  • BOE (bottom Opposite End) Connections

COLOUR OPTIONS

  • Supplied in White RAL 9016 as standard

  • 25 RAL colours

PLEASE NOTE

Related Products

You will also need:

MODEL

WATTS

(∆T50)

DEPTH

(mm)

HEIGHT

(mm)

WIDTH

(mm)

TYPE2230

758 - 1706

102

300

800 - 1800

TYPE2240

475 - 2374

102

400

400 - 2000

TYPE2250

556 - 2828

102

500

400 - 2000

TYPE2260

652 - 3262

102

600

400 - 2000
